Showing all 7 results

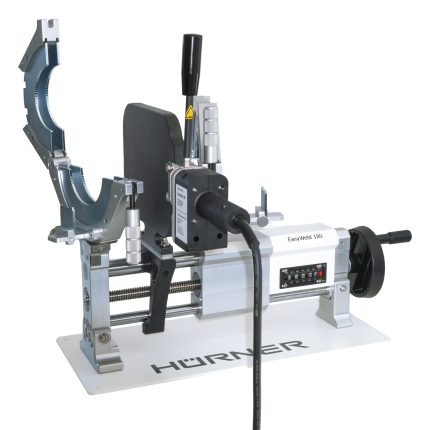

EasyWeld Line
HÜRNER’s EasyWeld Line is your professional solution for butt-welding applications with PE, PP, PVDF1) and ECTFE1) pipes and fittings for all pressure ratios, from O.D. 20 through 110 mm (Tees O.D. 20 through 90 mm) and O.D. 50 through 180 mm. This system enables a unique way of handling that is simply unavailable anywhere else. For welding operations, it offers all the advantages of a mobile butt-welding system that is user-friendly and handy enough to be at home at any place, both on worksites and in workshops.
The master clamps on the machine chassis are available, in the standard delivery, with horizontal and for the EasyWeld 110 T model also with vertical adjustability, which is particularly important for optimum results in Tee and segmented-bend welding applications. Its compact and lightweight design turns the machines into the optimum choice for overhead welding operations. This requires just the easy step of disassembling the machines from its base panel. The manufacture of fittings is possible thanks to the clamps on the chassis bilaterally swiveling by up to 15 deg. each (∢ 30 deg.). For tee jointing operations using the EasyWeld 110 T model, master clamps for the chassis are available that are set at a 45 deg. angle.
The machines as a whole with its frame are mounted on a heavy-duty, powder‑coated base panel. Besides the standard delivery that includes a power facing tool, an outfit with a perfectly ergonomically designed manual facing tool is also available for the EasyWeld 110 V 2 model version. Both the power and the manual facing tools feature a reversible blade.
The electronically controlled, PTFE-coated heating element features an integrated temperature control.

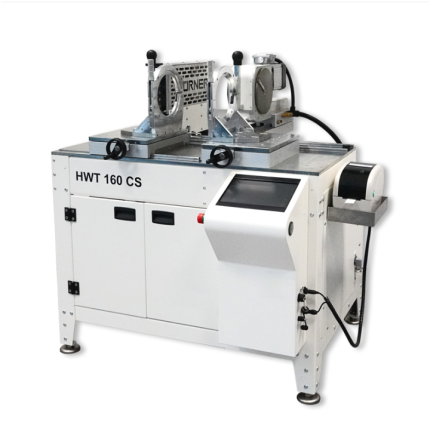

HWT 160 CS
HÜRNER's HWT 160 CS servo-operated workshop system is the end-to-end transformation of worksite technology into workshop systems.
The system has been developed in compliance with the so-called machinery directive 2006/42/EC as amended and allow making pipes, segmented bends and fittings in workable dimensions from O.D. 32 (20) through 160 mm | 1" (½") - 6". The welding system is set on a welded or a screwed-fast, heavy-duty, no-warp support frame and the bearings on which move both the horizontally traveling carriage and the heating element and facing tool assembly, are designed as precision-engineered and heavy load-bearing trapeze-shaped guides with precision-matched runner blocks.
It goes without saying that all parameters that are critical for a high-quality and reproducible welded joint are monitored throughout the process and saved to the memory of the system, which can hold up to 10,000 reports. Furthermore, all CNC systems are equipped with a USB interface to enable downloading the welding reports in the PDF format to a USB stick or sending them to the management database in the HÜRNER DataWork Professional format. It is also possible to label a joint immediately for its quality by printing on plastic foil an indelible label tag with the available tag printer that will identify the fitting.

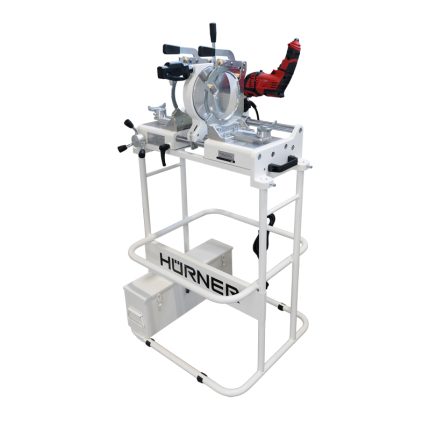

HWT 160 M / M+
Practical plastic butt-welding machines for jointing PE and PP pipes and fittings from O.D. 32 / 40 - 160 mm (1½" ‑ 6") with the heating element process, these tremendously mobile next-generation welding machines for on-site and in-shop applications are extremely versatile and especially suited for sanitary installations, drain piping, and pressure pipes for water conveyance as well as roof drains and chimney refurbishing systems.
The machines are shiped with a sturdy stand, an electrical facing tool, heating element, and all reducer inserts; arrives plug-and-play, fully installed.
Its clamps swivel by up to 15 degrees allowing segmented bend welding in sizes O.D. 32 / 40 - 160 mm (1½" ‑ 6").

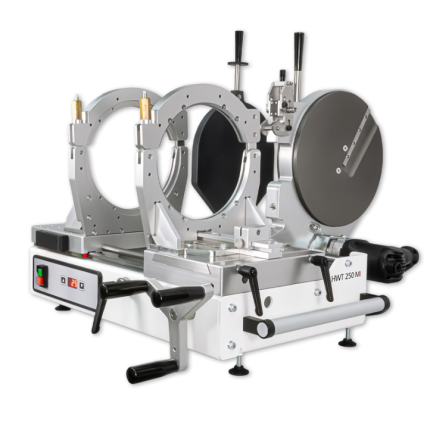

HWT 250 MI
HÜRNER HWT 250 MI for manufacturing PE, PE 100 RC, PP, and PVDF1) pipes, segmented bends, and fittings.
The design of the machine is such that pipes, segments O.D. 50 – 250 mm / 1½"– 8" with any SDR ratio up to SDR 11 can be processed.
The system was developed under the machinery directive 2006/42/EC as amended, as far as applicable, and is set on a welded and bolted, totally
heavy-duty support frame resistant to warping by design. Both the movable carriage of the system and the console carrying the heating element and the facing tool travel on precision-engineered, heavy load-bearing shafts and trapeze-shaped guides constructed with smoothly travelling runner blocks.
Inserting the PTFE-coated heating element and the facing tool manually is as convenient as it is effortless. The swiveling master clamps on both sides can be rotated by up to 2 x 15 deg. (∢30 deg.) and also feature horizontal adjustability, to allow for compensating any misalignments.
Heating element temperature control and facing tool operation are managed on the front panel. The practical wooden transport case serves both
as a operating platform and as secure storage for the machine, the reducers, and the accessories.

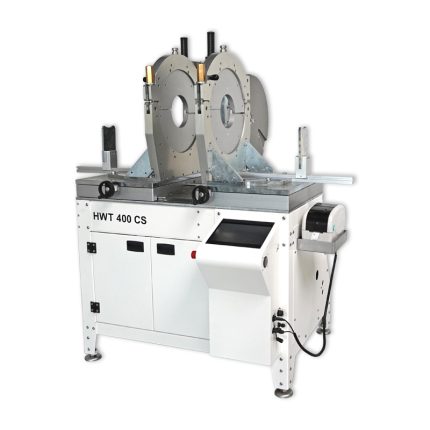

HWT 400 Line
HÜRNER's HWT 400 Line is the end-to-end transformation of worksite technology into workshop systems.
As a consequence, the HÜRNER HWT 400 mm workshop line, too, has systems of the versions CNC (HWT 400 CS and HWT 400 CS-S), WeldControl (HWT 400 WeldControl), and Manual Hydraulic (HWT 400 M).
All systems have been developed in compliance with the so-called machinery directive 2006/42/EC as amended and allow making segments, tees, Y pieces and crosspieces in workable dimensions from O.D. 90 through 400 mm (3 - 16" IPS).
The HWT 400 CS-S is equipped with additional master clamping assemblies designed for sidewall fusion onto the pipe saddle. The control software has been specifically adapted to allow one-sided preheating of the straight pipeline.
The welding systems are set on a welded or a screwed-fast, heavy-duty, no-warp support frame and the bearings on which move both the horizontally traveling carriages and the heating element and facing tool assembly, are designed as precision-engineered and heavy load-bearing trapeze-shaped guides with precision-matched runner blocks.
For the product versions CNC and WeldControl, it goes without saying that all parameters that are critical for a high-quality and reproducible welded joint are monitored throughout the process and saved to the memory of the system, which can hold up to 10,000 reports. Furthermore, all CNC and WeldControl systems are equipped with a USB interface to enable downloading the welding reports in the PDF format to a USB stick or sending them to the management database in the HÜRNER DataWork Professional format. It is also possible to label a joint immediately for its quality by printing on plastic foil an indelible label tag with the available tag printer that will identify the fitting.

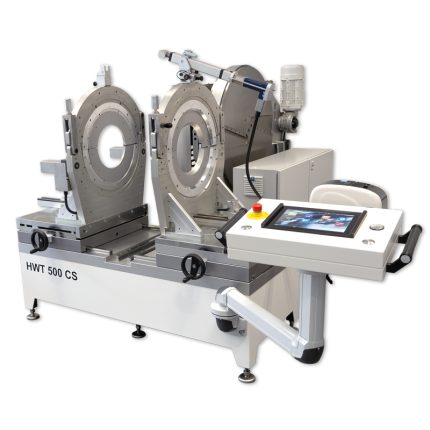

HWT 500 CS
HÜRNER's HWT 500 CS servo-operated workshop system is the end-to-end transformation of worksite technology into workshop systems.
The system has been developed in compliance with the so-called machinery directive 2006/42/EC as amended and allows making segments, tees, Y pieces and crosspieces in workable dimensions from O.D. 200 (160) through 500 mm | 6" - 20".
The welding system is set on a welded or a screwed-fast, heavy-duty, no-warp support frame and the bearings on which move both the horizontally traveling carriage and the heating element and facing tool assembly, are designed as precision-engineered and heavy load-bearing trapeze-shaped guides with precision-matched runner blocks.
It goes without saying that all parameters that are critical for a high-quality and reproducible welded joint are monitored throughout the process and saved to the memory of the system, which can hold up to 10,000 reports. Furthermore, all CNC systems are equipped with a USB interface to enable downloading the welding reports in the PDF format to a USB stick or sending them to the management database in the HÜRNER DataWork Professional format. It is also possible to label a joint immediately for its quality by printing on plastic foil an indelible label tag with the available tag printer that will identify the fitting.
HWT 630 CS
HÜRNER's HWT 630 CS servo-operated workshop system is the end-to-end transformation of worksite technology into workshop systems.
The system has been developed in compliance with the so-called machinery directive 2006/42/EC as amended and allows making segments, tees, Y pieces and crosspieces in workable dimensions from O.D. 160 through 630 (500) mm | 6" - 24 (20)".
The welding system is set on a welded or a screwed-fast, heavy-duty, no-warp support frame and the bearings on which move both the horizontally traveling carriage and the heating element and facing tool assembly, are designed as precision-engineered and heavy load-bearing trapeze-shaped guides with precision-matched runner blocks.
It goes without saying that all parameters that are critical for a high-quality and reproducible welded joint are monitored throughout the process and saved to the memory of the system, which can hold up to 10,000 reports. Furthermore, all CNC systems are equipped with a USB interface to enable downloading the welding reports in the PDF format to a USB stick or sending them to the management database in the HÜRNER DataWork Professional format. It is also possible to label a joint immediately for its quality by printing on plastic foil an indelible label tag with the available tag printer that will identify the fitting.
