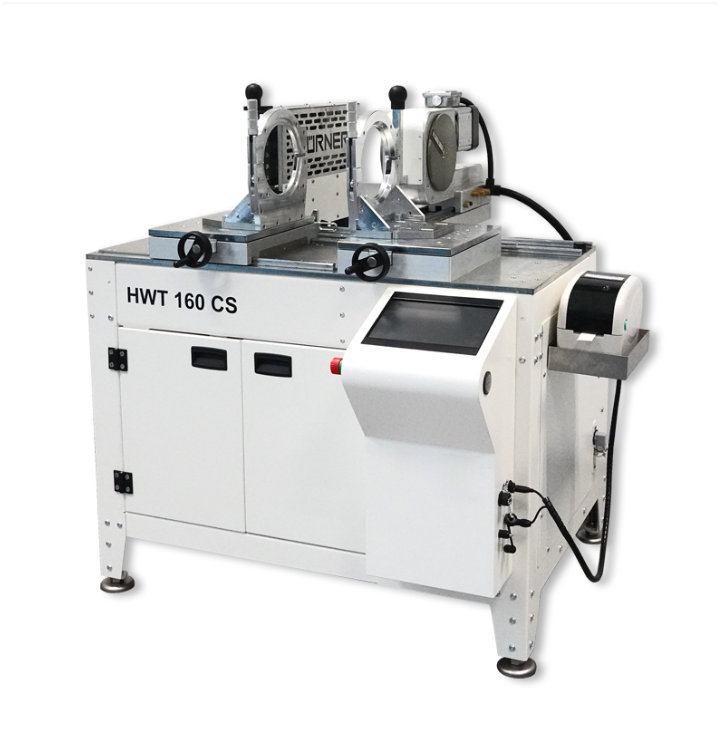

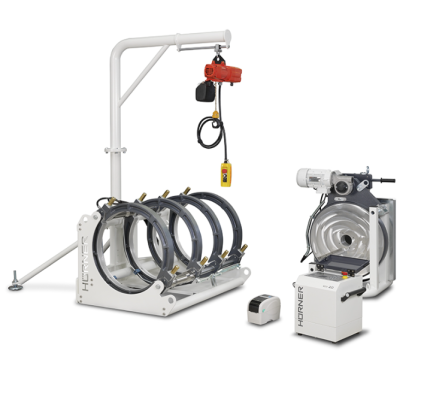

HWT 160 CS

HÜRNER’s HWT 160 CS servo-operated workshop system is the end-to-end transformation of worksite technology into workshop systems.

The system has been developed in compliance with the so-called machinery directive 2006/42/EC as amended and allow making pipes, segmented bends and fittings in workable dimensions from O.D. 32 (20) through 160 mm | 1″ (½”) – 6″. The welding system is set on a welded or a screwed-fast, heavy-duty, no-warp support frame and the bearings on which move both the horizontally traveling carriage and the heating element and facing tool assembly, are designed as precision-engineered and heavy load-bearing trapeze-shaped guides with precision-matched runner blocks.

It goes without saying that all parameters that are critical for a high-quality and reproducible welded joint are monitored throughout the process and saved to the memory of the system, which can hold up to 10,000 reports. Furthermore, all CNC systems are equipped with a USB interface to enable downloading the welding reports in the PDF format to a USB stick or sending them to the management database in the HÜRNER DataWork Professional format. It is also possible to label a joint immediately for its quality by printing on plastic foil an indelible label tag with the available tag printer that will identify the fitting.

Categories: HÜRNER, Workshop Technology

Description

Description

Technical Specs


Technical specs	HWT 160 CS
P/N with narrow aluminum clamping jaws	403-000-000 (metric) 403-000-001 (IPS¹⁾)
Machine dimensions (W × H × D)	approx. 1100 × 1200 × 1050 mm
Machine total weight	430 kg
Power supply	400 V, 50 Hz, (3 ph., PE)
Machine overall rated power	6530 W
Heating element rated power	4500 W
Facing tool rated power	330 W
Compressed air	min. 6 bar, max. 14 bar (2:4:2)
Temperature range	0 °C – 60 °C
Heating element temperature	max. 280 °C
Operating range	Segments: 32 (20) – 160 mm \| 1″ (½”) – 6″
Automatic data logging	10,000 welding operations
Data download	USB ports (USB A) for USB stick and label tag printer
Standards, approvals, quality	Machinery directive 2006/42/EC, DVS 2207-1, WEEE Reg. No. DE 74849106, ISO 9001:2015
