HWT 630 CS

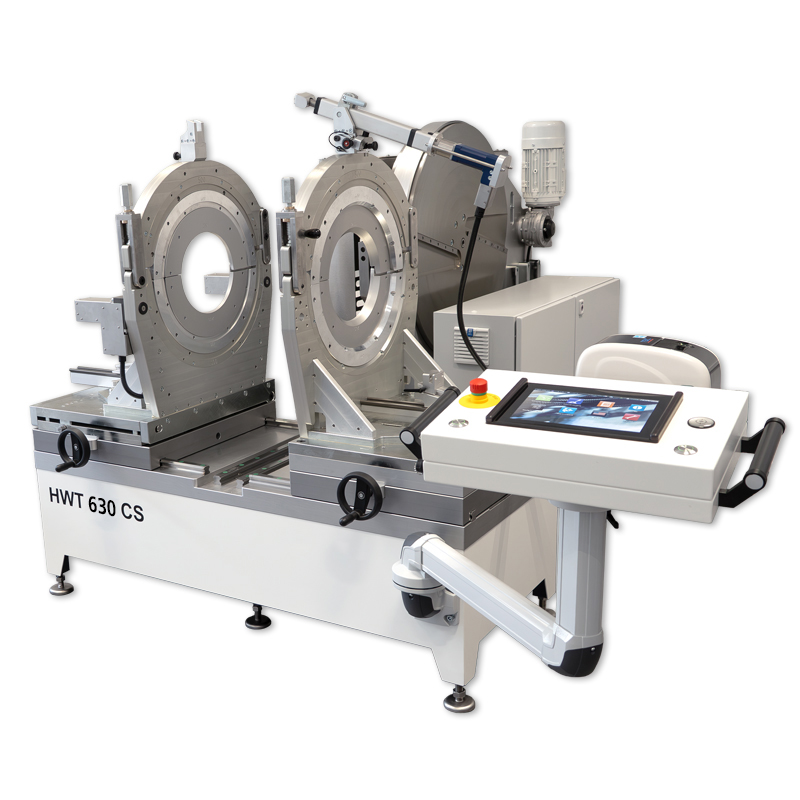

HÜRNER’s HWT 630 CS servo-operated workshop system is the end-to-end transformation of worksite technology into workshop systems.

The system has been developed in compliance with the so-called machinery directive 2006/42/EC as amended and allows making segments, tees, Y pieces and crosspieces in workable dimensions from O.D. 160 through 630 (500) mm | 6″ – 24 (20)”.

The welding system is set on a welded or a screwed-fast, heavy-duty, no-warp support frame and the bearings on which move both the horizontally traveling carriage and the heating element and facing tool assembly, are designed as precision-engineered and heavy load-bearing trapeze-shaped guides with precision-matched runner blocks.

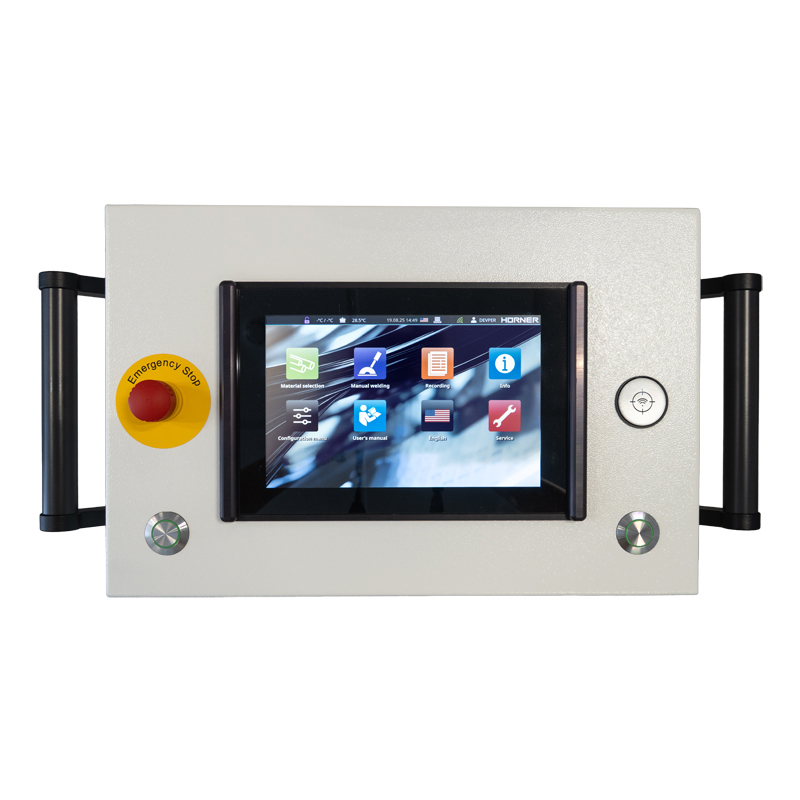

It goes without saying that all parameters that are critical for a high-quality and reproducible welded joint are monitored throughout the process and saved to the memory of the system, which can hold up to 10,000 reports. Furthermore, all CNC systems are equipped with a USB interface to enable downloading the welding reports in the PDF format to a USB stick or sending them to the management database in the HÜRNER DataWork Professional format. It is also possible to label a joint immediately for its quality by printing on plastic foil an indelible label tag with the available tag printer that will identify the fitting.

Categories: HÜRNER, Workshop Technology

Description

Description

Technical Specs

Technical specs	HWT 630 CS
P/N with narrow aluminum clamping jaws	415-000-000 415-000-001 (IPS)
Machine dimensions (W × H × D)	approx. 1500 × 2500 × 1700 mm
Machine weight	1545 kg
Power supply	400 V, 50 Hz, (3 ph., PE)
Machine overall rated power	14.6 kW
Heating element rated power	9 kW
Facing tool rated power	2.2 kW
Servo motor rated power	3.4 kW
Compressed air	min. 6 bar, max. 14 bar (2:4:2)
Temperature range	5 °C – 40 °C
Heating element temperature	max. 290 °C
Operating range	Segments: 160 – 630 mm Tees, Crosspieces, Y-pieces: 160 – 500 mm¹⁾
Automatic data logging	10,000 welding operations
Data download	USB ports (USB A) for USB stick and label tag printer
Standards, approvals, quality	Machinery directive 2006/42/EC, DVS 2207-1, WEEE Reg. No. DE 74849106, ISO 9001:2015

¹⁾ requires optional clamps, under construction
