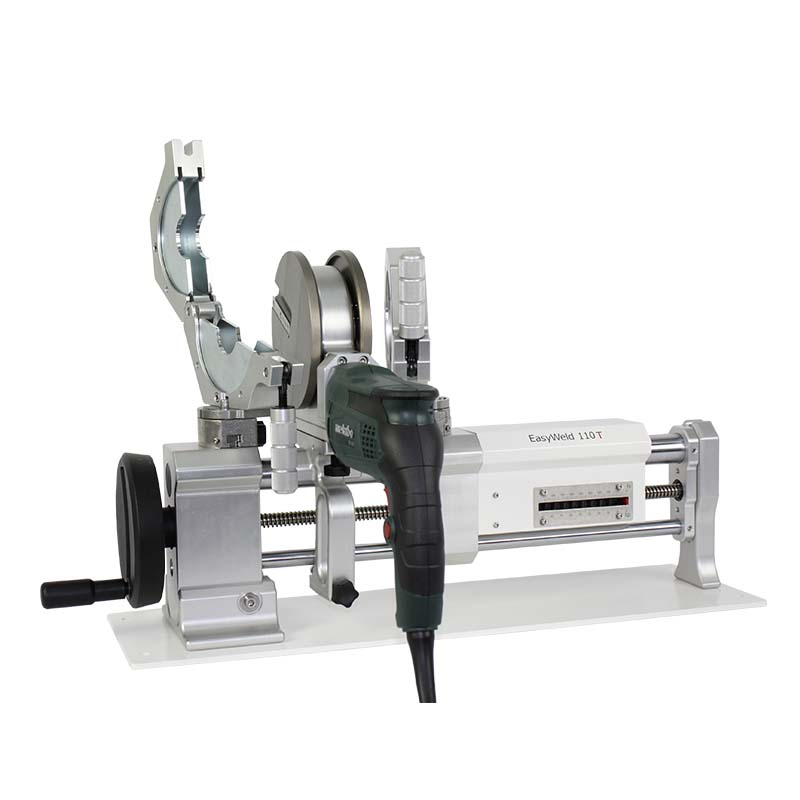

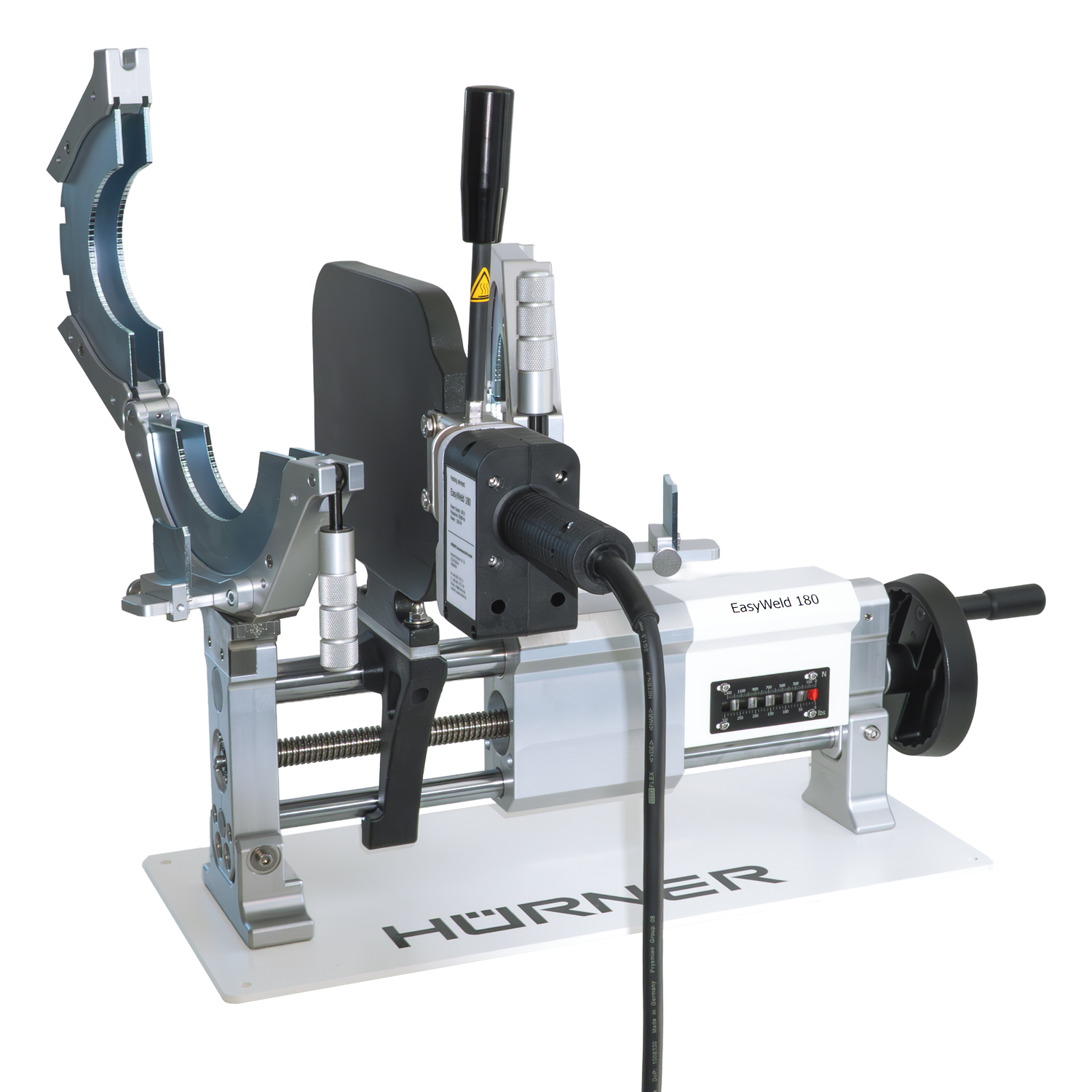

HÜRNER’s EasyWeld Line is your professional solution for butt-welding applications with PE, PP, PVDF1) and ECTFE1) pipes and fittings for all pressure ratios, from O.D. 20 through 110 mm (Tees O.D. 20 through 90 mm) and O.D. 50 through 180 mm. This system enables a unique way of handling that is simply unavailable anywhere else. For welding operations, it offers all the advantages of a mobile butt-welding system that is user-friendly and handy enough to be at home at any place, both on worksites and in workshops.

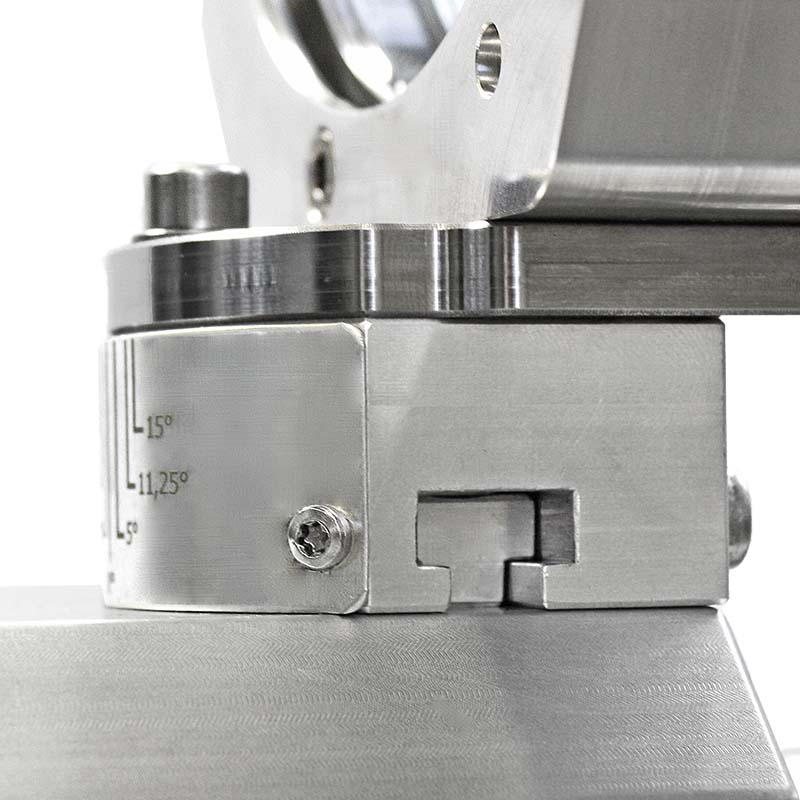

The master clamps on the machine chassis are available, in the standard delivery, with horizontal and for the EasyWeld 110 T model also with vertical adjustability, which is particularly important for optimum results in Tee and segmented-bend welding applications. Its compact and lightweight design turns the machines into the optimum choice for overhead welding operations. This requires just the easy step of disassembling the machines from its base panel. The manufacture of fittings is possible thanks to the clamps on the chassis bilaterally swiveling by up to 15 deg. each (∢ 30 deg.). For tee jointing operations using the EasyWeld 110 T model, master clamps for the chassis are available that are set at a 45 deg. angle.

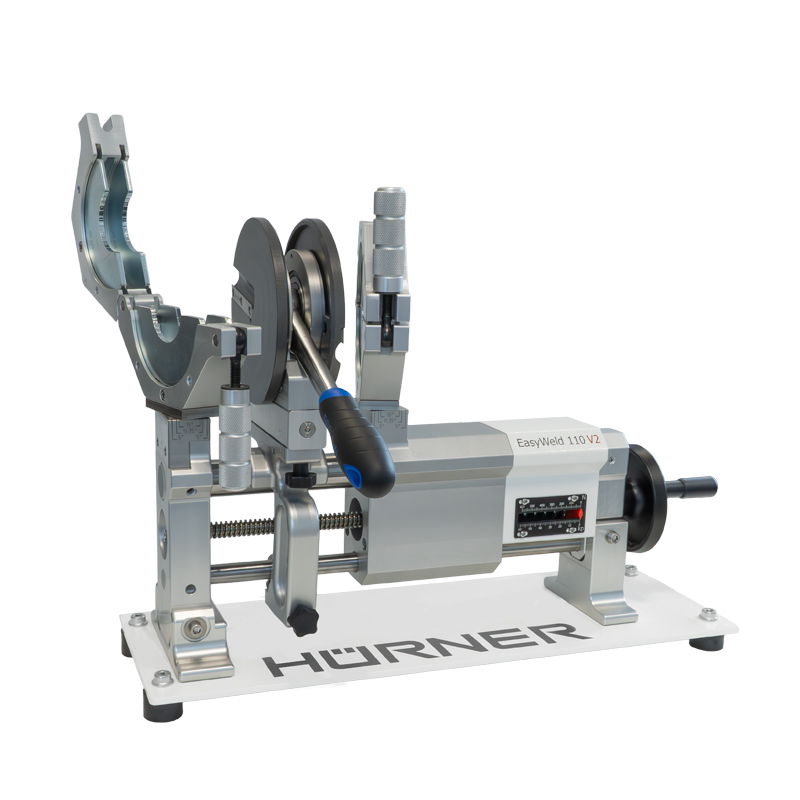

The machines as a whole with its frame are mounted on a heavy-duty, powder‑coated base panel. Besides the standard delivery that includes a power facing tool, an outfit with a perfectly ergonomically designed manual facing tool is also available for the EasyWeld 110 V 2 model version. Both the power and the manual facing tools feature a reversible blade.

The electronically controlled, PTFE-coated heating element features an integrated temperature control.

Categories: ,
Description

Technical Specs



Technical specs EasyWeld 110 V2 w/ horizontal adjustability and manual facing tool EasyWeld 110 V2 w/ horizontal adjustability and power facing tool EasyWeld 110 T w/ horizontal and vertical adjustability and power facing tool EasyWeld 180 w/ horizontal adjustability and power facing tool
P/N 400-415-051 (230 V, metric)
400-415-057 (230 V, IPS)

400-415-056 (110 V, metric)
400-415-058 (110 V, IPS)

 400-415-052 (230 V, metric)
400-415-060 (230 V, IPS)

400-415-059 (110 V, metric)
400-415-061 (110 V, IPS)

 200-260-152 (230 V, metric)
200-260-163 (230 V, IPS)

200-260-162 (110 V, metric)
200-260-168 (110 V, IPS)

 418-000-000 (230 V, metric)
418-000-004 (230 V, IPS)

418-000-001 (110 V, metric)
418-000-005 (110 V, IPS)
Operating range, O.D. 20 – 110 mm 20 – 110 mm 20 – 110 mm 50 – 180 mm
Operating range for tee welding

–

 – 20 – 90 mm –
Power supply 230 V / 110 V, 50 Hz 230 V / 110 V, 50 Hz 230 V / 110 V, 50 Hz 230 V / 110 V, 50 Hz
Rated power heating element/facing tool 800 W / – 800 W / 560 W 800 W / 560 W 1350 W / 1300 W
Weight machine assembled incl. base panel 14 kg 14 kg 14 kg 22 kg
Weight machine without base panel (overhead welding operations) 9 kg 9 kg 9 kg 15 kg
Reducer inserts, 8 semi-circular jaws per size 20, 25, 32, 40, 50, 63, 75, 90 mm | ½“, ¾“, 1“, 1½“, 2“, 2½“, 3“ IPS 20, 25, 32, 40, 50, 63, 75, 90 mm | ½“, ¾“, 1“, 1½“, 2“, 2½“, 3“ IPS 20, 25, 32, 40, 50, 63, 75, 90 mm | ½“, ¾“, 1“, 1½“, 2“, 2½“, 3“ IPS 50, 63, 75, 90, 110, 125, 140, 160 mm  | 1½“, 2“, 2½“, 3“, 3½“, 4“, 5“, 6“ IPS
