Modular Protection System

Protect your chemical storage cabinet against unauthorized access, using the Modular Protection System (MPS). This system enables you to physically control the access to resources or hazardous substances in a state-of-the-art approach.

The identification ensures that only authorized persons are given access to the hazardous substances in question. This is implemented in the form of programmable PINs read from a transponder card by RFID technology. The identification can then be paired to the locking or the unlocking of the door of the cabinet. This means that the authorizations of personnel can extend to the storage cabinets as well.

The MPS is an important module to comply with increasingly tight requirements in terms of risk assessment as related to access control. In practical implementation, this may mean for you that work instructions providing for the safe and controlled use of hazardous substances can allow less complex routines, as, e.g., TRGS 526.

A functionality the MPS provides is the possibility to automatically close the door. This means that the cabinet takes care of door closing after the door was manually opened.

Categories: Air Extraction, HÜRNER

Related products

HÜRNER LI Line CNC ECO

Request a Brochure

The HÜRNER LI Line CNC ECO is a high-quality and durable, next-generation CN-controlled plastic pipe butt-welding machine that has been developed in compliance, as applicable, with the machinery directive 2006/42/EC as amended as well as the ISO standard 12176-1 and the DVS standard 2207-1. The design of the machine is such that with 12 basic machine chassis models, pipes from O.D. (63) 75 through 355 mm can be jointed The welding machines ship with a fully encased CNC hydraulic and control box of ingress protection IP 54 managing pressures of up to 220 bar. Both the anti-stick-coated heating element and the facing tool are hooked up along with the machine chassis to the hydraulic and control unit. No additional power distribution is needed.

Electrofusion Customized Solutions

Request a Brochure

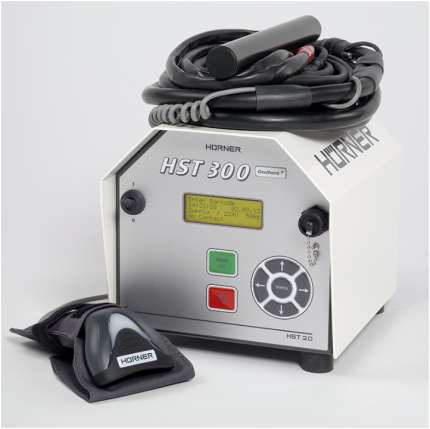

The WhiteLine welders cover all areas of application in electrofustion welding of PE, PP, and PVDF pipes with heater coil fittings. There is no challenge for which you will not find a welder of the series able to take it on successfully.

Wherever applicable, HÜRNER's all-purpose electrofusion welders have been developed in line with the requirements of the most recent version of the ISO standard 12176-2:2000, the DVS standard 2201-1, and the WEEE directive, with Reg. No. DE 74849106.

Whether it is jointing in the safety-sensitive area of gas networks, including accurate recording of geographic data, jointing components with very small diameters (e. g., geothermal or sanitary fitting applications) or very large diameters (e. g., wastewater applications)—the welders will always make a statement by their unyielding reliability that builds on more than 40 years of developing and manufacturing experience

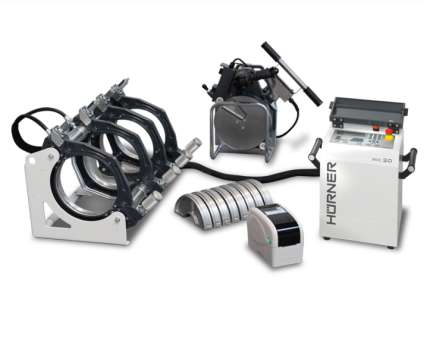

HÜRNER LI Line, the 4-3-2 Machine Manual

Request a Brochure

The HÜRNER 4-3-2 Manual Hydraulic Series of butt-welding machines in the LI Line generation makes a statement by its superior manufacturing quality and its scalability in the form of an easy upgrade to a data logging-enabled machine with the installation of an SPG 2.0 data logger for welding report logging. The machine ships with a hydraulic unit that features, as a unique characteristic, a totally integrated enclosure that also is a splash and dirt shield for all components on the inside. The front panel controls, too, are included in the ingress protection according to the IP 54 rating (where IP 64 is possible upon request). All connections, including an additional power socket free to use for the operator’s convenience, are located at the back of the controller. Both the facing tool and the heating element are also connected at the back panel of the hydraulic controller. Therefore, no additional power distribution unit is needed.

Air Extractor with Fan

Request a Brochure

This extractor provides easy airflow monitoring of chemical storage cabinets. The airflow monitoring unit with integrated fan ships preassembled to be installed immediately on top of the storage cabinet. The enclosure is made of silver pearl glimmer, powder-coated sheet steel

A sensor monitors the extraction airflow and triggers a visual and audible alarm when no airflow above the defined minimum is detected. The air monitoring unit fan ships preassembled to be installed immediately on top of the storage cabinet. The alarm threshold for the airflow velocity is factory-set, but can be customized at the differential pressure meter/switch. The airflow sensor monitors the actual extraction velocity and the entire extraction system of the storage cabinet. Both the volumetric flow and the power supply are sensed by a microcontroller unit. When airflow velocity drops below the set threshold, visual and audible alarms are set off. The system ships with two potential-free (“dry”) contacts (24 V, 2 A) that can be used to send an alarm signal to the control center. An integrated battery cuts in in case of power supply failure, and the monitoring system and the display, including simple error messaging, can run on it for 4 hours. The product ships ready for plug-in.

HWT 160 SW–S

Request a Brochure

This professional socket welder for saddle-style fittings is designed for all-purpose welding applications in PP, PP‑R, and PEHD pipeline grids, to make branch‑offs of O.D. 20 - 90 mm from straight pipelines of O.D. 40 - 160 mm. It is the ideal choice for making lines branching off from the pipe in a saddle position in tight corners, but also for workshop applications meant for the serial manufacture by a reliable process of distribution/manifold lines with the help of a movable right-hand and left-hand pipe clamp. The standard delivery includes the all-purpose pipe aligners for straight pipelines sized O.D. 40 - 160 mm, a bracket compatible with various cordless drills/screwdrivers Ø 43 mm driving the drilling head, and clamps for branch-offs in the saddle position sized up to O.D. 63 mm allowing precision alignment of cylindrical and octagonal fittings.

With the HÜRNER quick mounting system, the clamps can be replaced easy as ABC. The chassis/carriage, without the RH and LH pipe‑aligning clamps, can be removed from its steel frame by simply loosening 4 mounting screws and can then be used in areas that are hard to reach or overhead.

Both the operation of the clamps for the straight pipe and the saddle fitting and the movement of the carriage for the latter are implemented as using ergonomically designed handwheels. Additionally, the motion handwheel can be removed easily, to move the clamping chassis/carriage with a common power tool (cordless drill/screwdriver) as its drive.

A special mention deserve the heating element seat next to the chassis for clamping the saddle fitting, on which to place the heating element, and the two freely adjustable depth setpoints. The easy insertion and safe and swift removal of the heating element, including centering and an auto‑detaching step in the change‑over stage, bring a use as convenient as to be considered unique.

The insertion depth setpoints provide, on the one hand, consistent fusion depth and welding position and, on the other, shorter length of movements, thus faster change-over.

Special octagonal clamps for branch‑off fittings, of various wrench sizes, are also available.

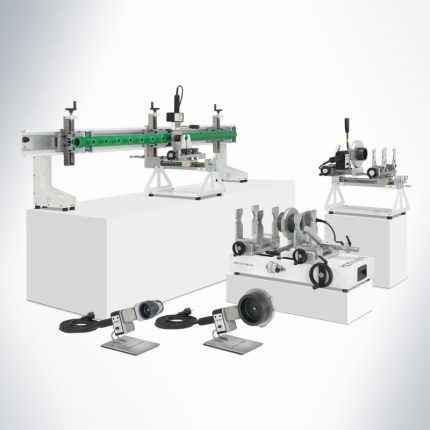

HWT 160 SW–E

Request a Brochure

This professional socket welder for setting branch-off fittings into the pipe wall is designed for all-purpose welding applications in PP and PEHD pipeline grids, to make branch‑offs of O.D. 20 - 63 mm^*) from straight pipelines of O.D. 40 - 160 mm. It is the ideal choice for making lines branching off from fittings set into the pipeline sidewall in tight corners, but also for workshop applications meant for the serial manufacture by a reliable process of distribution/manifold lines, e. g., in geothermal systems. The standard delivery includes the all-purpose pipe aligners for straight pipelines sized O.D. 40 - 160 mm, a bracket compatible with various cordless drills/screwdrivers Ø 43 mm driving the drilling head, and clamps for branch-offs in the saddle position sized up to O.D. 63 mm allowing precision alignment of cylindrical and octagonal fittings. With the HÜRNER quick mounting system, the clamps can be replaced easy as ABC. The chassis/carriage, without the RH and LH pipe‑aligning clamps, can be removed from its steel frame by simply loosening 4 mounting screws and can then be used in areas that are hard to reach or overhead. Both the operation of the clamps for the straight pipe and the saddle fitting and the movement of the carriage for the latter are implemented as using ergonomically designed handwheels. Additionally, the motion handwheel can be removed easily, to move the clamping chassis/carriage with a common power tool (cordless drill/screwdriver) as its drive. A special mention deserve the heating element seat next to the chassis for clamping the saddle fitting, on which to place the heating element, and the two freely adjustable depth setpoints. The easy insertion and safe and swift removal of the heating element, including centering and an auto‑detaching step in the change‑over stage, bring a use as convenient as to be considered unique. The insertion depth setpoints provide, on the one hand, consistent fusion depth and welding position and, on the other, shorter length of movements, thus faster change-over.

HWT 400 Line

Request a Brochure

HÜRNER's HWT 400 Line is the end-to-end transformation of worksite technology into workshop systems. As a consequence, the HÜRNER HWT 400 mm workshop line, too, has systems of the versions CNC (HWT 400 CS and HWT 400 CS-S), WeldControl (HWT 400 WeldControl), and Manual Hydraulic (HWT 400 M). All systems have been developed in compliance with the so-called machinery directive 2006/42/EC as amended and allow making segments, tees, Y pieces and crosspieces in workable dimensions from O.D. 90 through 400 mm (3 - 16" IPS). The HWT 400 CS-S is equipped with additional master clamping assemblies designed for sidewall fusion onto the pipe saddle. The control software has been specifically adapted to allow one-sided preheating of the straight pipeline. The welding systems are set on a welded or a screwed-fast, heavy-duty, no-warp support frame and the bearings on which move both the horizontally traveling carriages and the heating element and facing tool assembly, are designed as precision-engineered and heavy load-bearing trapeze-shaped guides with precision-matched runner blocks. For the product versions CNC and WeldControl, it goes without saying that all parameters that are critical for a high-quality and reproducible welded joint are monitored throughout the process and saved to the memory of the system, which can hold up to 10,000 reports. Furthermore, all CNC and WeldControl systems are equipped with a USB interface to enable downloading the welding reports in the PDF format to a USB stick or sending them to the management database in the HÜRNER DataWork Professional format. It is also possible to label a joint immediately for its quality by printing on plastic foil an indelible label tag with the available tag printer that will identify the fitting.

HÜRNER WhiteLine WeldControl 2.0

Request a Brochure

The handling of a WeldControl machine is simply unique and it enables an approach to welding no other system is able to offer. Either the operator makes use of the assistance of the interactively responding hydraulic and control unit. Or the manual mode is selected to make the joint “by hand”. In the WeldControl mode the system walks the operator through the process after the pipe parameters were entered or confirmed. This includes monitoring the operator’s inputs and recording the entire process. WeldControl machines do not only provide presets, though; they facilitate the work, e. g., by reducing the pressure automatically when the automode was enabled. Welding reports have all data required by ISO traceability. In the Manual mode the display screen works as a digital gauge. It displays the welding pressures and heating element temperatures and is a one-stop provider of all data. Industry version: Optionally, the machine chassis (250, 315, 355, 500, 630) are also available in an industry set-up with a modified 3^rd clamp for clamping fittings with a short connecting stub.*⁾ *⁾Retrofit kit for converting existing systems to industry version available upon request!
