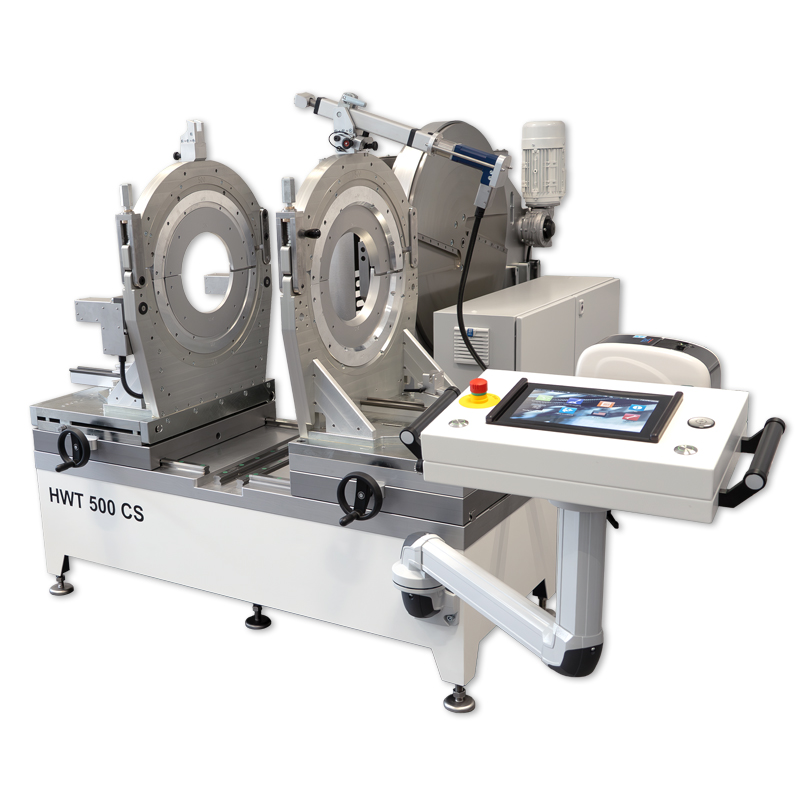

HWT 500 CS

HÜRNER’s HWT 500 CS  servo-operated workshop system is the end-to-end transformation of worksite technology into workshop systems.

The system has been developed in compliance with the so-called machinery directive 2006/42/EC as amended and allows making segments, tees, Y pieces and crosspieces in workable dimensions from O.D. 200 (160) through 500 mm | 6″ – 20″.

The welding system is set on a welded or a screwed-fast, heavy-duty, no-warp support frame and the bearings on which move both the horizontally traveling carriage and the heating element and facing tool assembly, are designed as precision-engineered and heavy load-bearing trapeze-shaped guides with precision-matched runner blocks.

It goes without saying that all parameters that are critical for a high-quality and reproducible welded joint are monitored throughout the process and saved to the memory of the system, which can hold up to 10,000 reports. Furthermore, all CNC systems are equipped with a USB interface to enable downloading the welding reports in the PDF format to a USB stick or sending them to the management database in the HÜRNER DataWork Professional format. It is also possible to label a joint immediately for its quality by printing on plastic foil an indelible label tag with the available tag printer that will identify the fitting.

Categories: ,
Description

Technical Specs

Technical specs HWT 500 CS
P/N with narrow
aluminum clamping jaws		 409-000-000
409-000-001 (IPS)
Machine dimensions (W × H × D) approx. 1500 × 2500 × 1700 mm
Machine weight 1490 kg
Power supply 400 V, 50 Hz, (3 ph., PE)
Machine overall rated power 13.6 kW
Heating element rated power 8 kW
Facing tool rated power 2.2 kW
Servo motor rated power 3.4 kW
Compressed air min. 6 bar, max. 14 bar (2:4:2)
Temperature range 5 °C – 40 °C
Heating element temperature max. 290 °C
Operating range Segments: 160 – 500 mm
Tees, Crosspieces, Y-pieces: 160 – 500 mm1)
Automatic data logging 10,000 welding operations
Data download USB ports (USB A) for USB stick and label tag printer
Standards, approvals, quality Machinery directive 2006/42/EC, DVS 2207-1, WEEE Reg. No. DE 74849106, ISO 9001:2015



1)           requires optional clamps

Related products

HÜRNER BSM 450

Request a Brochure
This band saw for cutting plastic pipes offers a working range from O.D. 50 - 450 mm. The machine has a steel pipework frame with a diamond-shaped pipe bed. A variably adjustable clamping system allows the manual securing of the pipe in the diamond bed. An angle gauge located on the side where the user stands enables any cutting angle from 0 deg. through 45 deg. An optional support panel can be mounted onto the diamond-shaped bed to enable you to cut Tees and crosspieces professionally.
Machine dimensions (H x W x D) 1800 x 1400 x 1200 mm Machine weight 190 kg Power supply 400 V, 50 Hz (3 ph. PE, N) Machine overall rated power 1250 W Operating range 50 - 450 mm Manufacturer Warranty 12 months Standards, quality WEEE Reg. No. DE 74849106, ISO 9001:2015

HÜRNER WhiteLine SPG 2.0

Request a Brochure

HÜRNER’s welding data logger SPG 2.0 is made for easy and safe welding process control and report logging pursuant to the ISO 12176 standard.

The report generation system is specifically matched to HÜRNER butt-welding machines of the Manual Hydraulic series, but can of course be used with other systems effortlessly. The SPG 2.0 control software ships ex works with configurations for many third-party systems already installed. Therefore, the logger constitutes an upgrade for manually operated welding machines to achieve ISO-compliant recording, error handling, and welding process control. At every step in the welding process, the SPG 2.0 indicates the nominal and the actual values of the welding pressures and times, to walk the welder operating the hydraulic unit easily and correctly through the process. The unit thereby achieves the optimum welding process, in line with nationally applicable standards, as affecting both heating element temperatures and welding pressures and times.

Fluid Media Management System

Read more
This fluid media management system with a programmable control terminal and numerous functional modules ensures highest levels of occupational safety. One control terminal can be used to control several chemical storage cabinets and can be set up with various modules. In its standard model version, the system allows selecting the components needed for a planned system from the following modules: Identification module which makes sure that only authorized persons are given access to the hazardous substances in question. In active storage mode, the media are released only subsequent to proper identification. This is implemented in the form of the input of a programmable PIN. The identification can also be implemented, upon request, with transponder keys or biometrical readers. Air extraction monitoring module which monitors the air extractions and triggers alarms as appropriate. The air extraction has to be always operating on cabinets that can go into active storage mode. When it is, it must constantly verify that there is a flow of extracted air and must alert to the problem whenever the airflow should fail. The air extraction monitoring module is a way to comply with this requirement, i.e. when extraction airflow fails, an alarm is triggered and a signal is sent, e.g., to the control center. Dosing module which enables exact filling. The dosing module turns the release of very small quantities of fluid media from large storage units into a process that it just as easy as it is safe. The ideal add-on to a COMPLEX Line drum station, there is the possibility, besides dosing, to ensure continuous analyses of consumed and remaining quantities. Level sensing module which alerts to the risk of overflowing storage units. The level sensor drastically reduces any risk of bringing too much media into a storage unit, and the safety of both the user and the environment increases accordingly. The level sensing module is the part that completes the perfect solution, DISPOSAL Line. Combining the DISPOSAL Line and the COMPLEX Line brings you the ideal preconditions to ensure easy and safe media management. Door opening module which opens the door when switched on at the keypad. When the command was entered and confirmed, an audible signal alerts the user to the door being opened. The control by compressed air does not have any electrical or electronic component, which makes it perfectly suited for explosive atmospheres. Door locking module which enables pairing door locking and door unlocking to user identification, thereby restricting access to the fluid media to those persons authorized to use them. In other words, access control for personnel can extend to the access to the chemical storage cabinets.

Electrofusion Sanitary Applications

Request a Brochure
HÜRNER’s all-purpose electrofusion welders for heater-coil fittings offer expertly and convenient jointing with PE fittings for electrofusion sized 16 - 315 mm in wastewater and roof draining applications. Controlled by a microcontroller, the next-generation welder HÜRNER HST-S-315 2.0 enables temperature compensation by welding duration and features input and output voltage monitoring. It thereby is the convenient choice for power supply from a generator on a worksite, too. The welding process is monitored for its full duration, and relevant information is displayed on the seven-segment screen. The welder ships equipped with connection adapters A00, A01, A02, A03, A04, and A0P (Waviduo 200 - 315 mm). The delivery also includes a manual scraper for professional pipe preparation before welding. With its compact dimensions and the long power supply and welding cables, the welder has an extremely large working radius and can therefore be used for those pipelines that are hard to reach.

HWT 125 SW light

Read more

All-purpose socket welder for PP, PP-R, PVDF, PB, and PEHD fittings and pipelines in the range of dimensions from O.D. 20 - 125 mm, for professional overhead welding and operations in a confined space, yet also for standard workshop applications.

In its standard delivery, sockets and spigots size O.D. 63 - 125 mm are included, with O.D. 20 - 50 mm as an optional extra. With the HÜRNER quick mounting system, the clamps can be replaced easy as ABC. The clamping chassis can be removed from its steel frame by simply loosening 4 mounting screws and can, therefore, be used in areas that are hard to reach or overhead.

Both clamping the pipe and the fitting and moving the machine carriages are implemented as using ergonomically designed handwheels. Additionally, the motion handwheel can be removed easily, to move the carriages with a common power tool (drill / cordless screwdriver) as its drive. A special mention deserves the heating element seat of the clamping chassis, on which to place the heating element. The feature ensures easy insertion and safe removal of the heater, thereby providing reliable change-over management and convenient use that are unique in this category of welding systems.

HÜRNER LI Line, the 4-3-2 Machine WeldControl

Request a Brochure
The handling of the HÜRNER 4-3-2 machine WeldControl is simply unique and it enables an approach to welding no other system is able to offer. Either the operator makes use of the assistance of the interactively responding hydraulic and control unit. Or the manual mode is selected to make the joint “by hand”. In the WeldControl mode the system walks the operator through the process after the pipe parameters were entered or confirmed. This includes monitoring the operator’s inputs and recording the entire process. WeldControl machines do not only provide presets, though; they facilitate the work, e. g., by reducing the pressure automatically when the automode was enabled. Welding reports have all data required by ISO traceability. In the Manual mode the display screen works as a digital gauge. It displays the welding pressures and heating element temperatures and is a one-stop provider of all data.

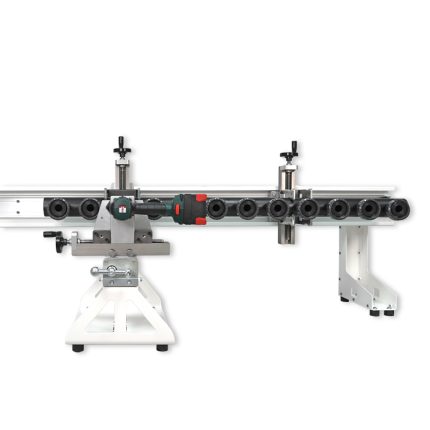

HWT 160 SW–E
