HWT 250 MI

HÜRNER HWT 250 MI for manufacturing PE, PE 100 RC, PP, and PVDF1) pipes, segmented bends, and fittings.

The design of the machine is such that pipes, segments O.D. 50 – 250 mm / 1½”– 8″ with any SDR ratio up to SDR 11 can be processed.

The system was developed under the machinery directive 2006/42/EC as amended, as far as applicable, and is set on a welded and bolted, totally
heavy-duty support frame resistant to warping by design. Both the movable carriage of the system and the console carrying the heating element and the facing tool travel on precision-engineered, heavy load-bearing shafts and trapeze-shaped guides constructed with smoothly travelling runner blocks.

Inserting the PTFE-coated heating element and the facing tool manually is as convenient as it is effortless. The swiveling master clamps on both sides can be rotated by up to 2 x 15 deg. (∢30 deg.) and also feature horizontal adjustability, to allow for compensating any misalignments.

Heating element temperature control and facing tool operation are managed on the front panel. The practical wooden transport case serves both
as a operating platform and as secure storage for the machine, the reducers, and the accessories.

Categories: ,
Description

Technical Specs

Technical Specs P/N
HWT 250 MI (230 V) 408-000-000
HWT 250 MI (110 V) 408-000-001
Reducer set, aluminium (50 – 225 mm)
incl. pipe rests and wooden transport box		 408-401-SET
Reducer set, steel (50 – 225 mm)
incl. pipe rests and wooden transport box		 408-402-SET
Reducer set IPS (1½” – 8″)
incl. pipe rests and wooden transport box		 408-403-SET
Operating range w/ straight pipe, segments 50 – 250 mm, SDR 11 | 1½” – 8″ IPS
Materials PE, PE 100 RC, PP
Input voltage 230 V, 50/60 Hz or 110 V, 50 Hz
Rated power 3.2 kW
Weight inclusive of master clamps approx. 93 kg
Dimensions (W × H × D) approx. 880 x 585 x 740 mm (with handle of heating element)
Reducers 50, 63, 75, 90, 110, 125, 140, 160, 180, 200, 225 mm | 1½”, 2″, 2½”, 3″, 3½”, 4″, 6″, 8″ IPS
Accessories Wooden transport box for reducers, user’s manual, tools

Related products

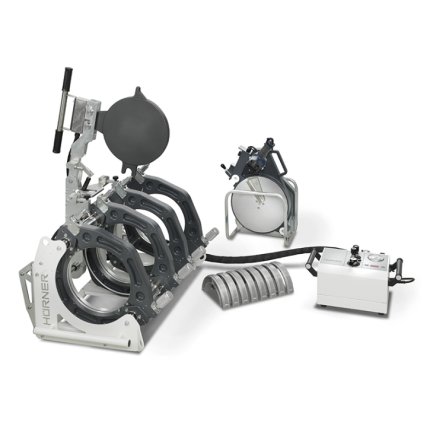

HÜRNER LI Line, the 4-3-2 Machine Manual

Request a Brochure
The HÜRNER 4-3-2 Manual Hydraulic Series of butt-welding machines in the LI Line generation makes a statement by its superior manufacturing quality and its scalability in the form of an easy upgrade to a data logging-enabled machine with the installation of an SPG 2.0 data logger for welding report logging. The machine ships with a hydraulic unit that features, as a unique characteristic, a totally integrated enclosure that also is a splash and dirt shield for all components on the inside. The front panel controls, too, are included in the ingress protection according to the IP 54 rating (where IP 64 is possible upon request). All connections, including an additional power socket free to use for the operator’s convenience, are located at the back of the controller. Both the facing tool and the heating element are also connected at the back panel of the hydraulic controller. Therefore, no additional power distribution unit is needed.

Extraction Monitor without Fan

Request a Brochure

This monitoring unit provides easy airflow monitoring of chemical storage cabinets. A sensor monitors the extraction airflow and triggers a visual and audible alarm when no airflow above the defined minimum is detected. The air monitoring unit without fan ships preassembled to be installed immediately on top of the storage cabinet. The alarm threshold for the airflow velocity is factory-set, but can be customized at the differential pressure meter/switch. The enclosure is made of silver pearl glimmer, powder-coated sheet steel. The airflow sensor monitors the actual extraction velocity and the entire extraction system of the storage cabinet.

Both the volumetric flow and the power supply are sensed by a microcontroller unit. When airflow velocity drops below the set threshold, visual and audible alarms are set off. The system ships with two potential-free (“dry”) contacts (24  V, 2 A) that can be used to send an alarm signal to the control center. An integrated battery cuts in in case of power supply failure, and the monitoring system and the display, including simple error messaging, can run on it for 4 hours. The product ships ready for plug-in.

HÜRNER WhiteLine SPG 2.0

Request a Brochure

HÜRNER’s welding data logger SPG 2.0 is made for easy and safe welding process control and report logging pursuant to the ISO 12176 standard.

The report generation system is specifically matched to HÜRNER butt-welding machines of the Manual Hydraulic series, but can of course be used with other systems effortlessly. The SPG 2.0 control software ships ex works with configurations for many third-party systems already installed. Therefore, the logger constitutes an upgrade for manually operated welding machines to achieve ISO-compliant recording, error handling, and welding process control. At every step in the welding process, the SPG 2.0 indicates the nominal and the actual values of the welding pressures and times, to walk the welder operating the hydraulic unit easily and correctly through the process. The unit thereby achieves the optimum welding process, in line with nationally applicable standards, as affecting both heating element temperatures and welding pressures and times.

HÜRNER WhiteLine WeldControl 2.0

Request a Brochure
The handling of a WeldControl machine is simply unique and it enables an approach to welding no other system is able to offer. Either the operator makes use of the assistance of the interactively responding hydraulic and control unit. Or the manual mode is selected to make the joint “by hand”. In the WeldControl mode the system walks the operator through the process after the pipe parameters were entered or confirmed. This includes monitoring the operator’s inputs and recording the entire process. WeldControl machines do not only provide presets, though; they facilitate the work, e. g., by reducing the pressure automatically when the automode was enabled. Welding reports have all data required by ISO traceability. In the Manual mode the display screen works as a digital gauge. It displays the welding pressures and heating element temperatures and is a one-stop provider of all data. Industry version: Optionally, the machine chassis (250, 315, 355, 500, 630) are also available in an industry set-up with a modified 3rd clamp for clamping fittings with a short connecting stub.*) *) Retrofit kit for converting existing systems to industry version available upon request!

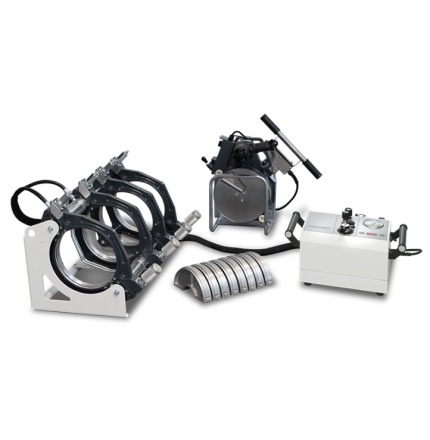

HÜRNER WhiteLine Manual Hydraulic
